Baron Blakeslee's ATH is our most affordable Dual Axis material handling system designed for small M Series degreasers.
ATH Series Dual Axis

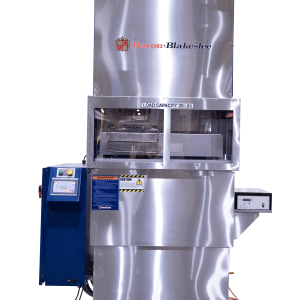

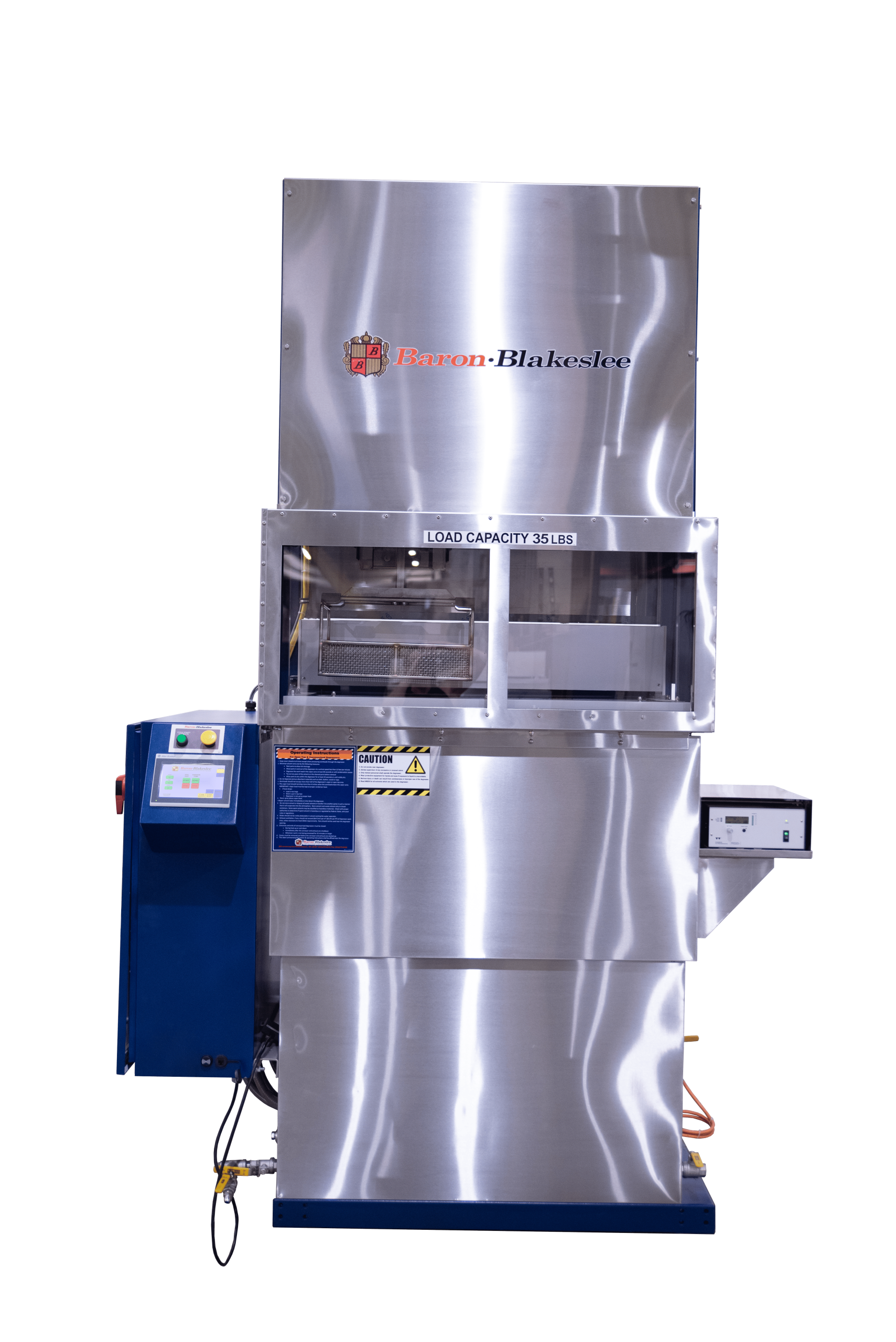

This ATH mounts atop the M Series degreaser to minimize floor space. The operator places the basket onto the ATH, begins the cleaning cycle, and removes the basket at the cycle's completion.

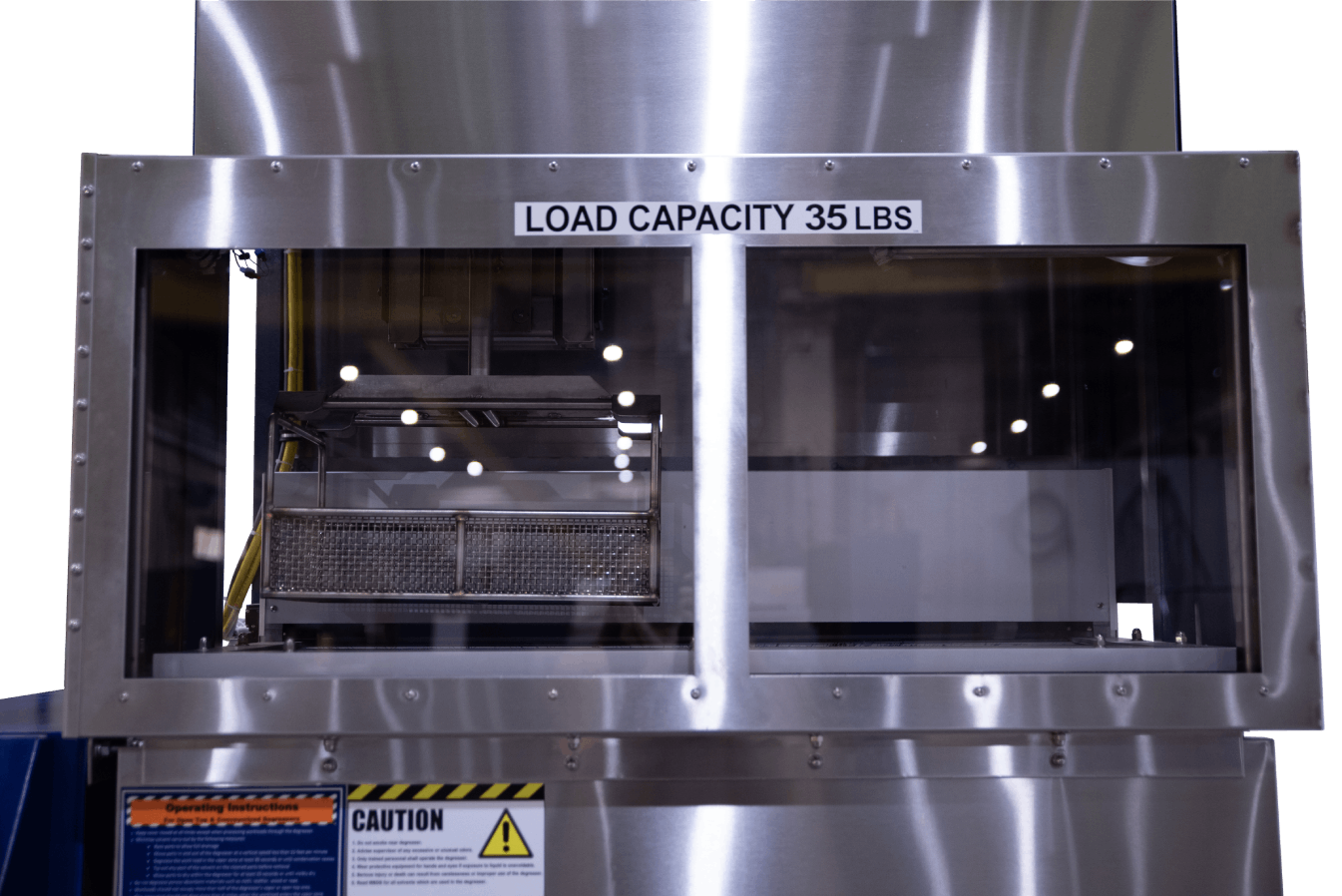

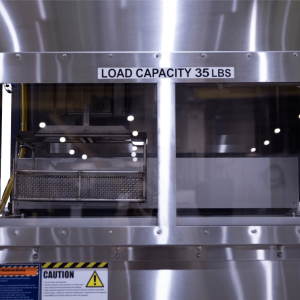

The ATH Dual Axis hoist system is intended for the following M Series degreaser models: MVR-215, MLR-120, MSR-120, MVR-444, MLR-216 & MSR-216. The ATH Dual Axis hoist system is available in 10lb and 35lb capacities.
Features
- Dual Axis Material Handling
- Simple Cable Type Lift Design
- Cantilevered Support Design
- Simple Air Cylinder Horizontal Transfer
- Design Eliminates Moving Parts Over The Cleaning System
- Painted Mild Steel Structural Frame
- Guides For Horizontal And Vertical Movement
- Adjustable, Four Zone Cycle Dwell Times:
- Boil Immersion
- Rinse Immersion
- Rinse Vapor
- Rinse Freeboard
- PLC Control + Color Touchscreen HMI
- Emergency Stop
Benefits
- Affordable Two Axis Material Handling
- Easy To Program, No Computer Required
- Robust, Simple Construction
- All Stainless Steel Construction In Solvent Wetted Areas
- Integrates Seamlessly Onto Baron Blakeslee M Series Equipment
- Does Not Increase System Footprint
